EMS-FF-FS20 · 20 L/min
Rack and in-row loops, 5–15 % split.
Step 03
Coolant filtration skids
Full-flow filtration costs energy and footprint.
Side-stream
5–15% of volume
Full turnover
6–12h
Multiplier
2×· up to 10×
No distribution units, no cold plates.

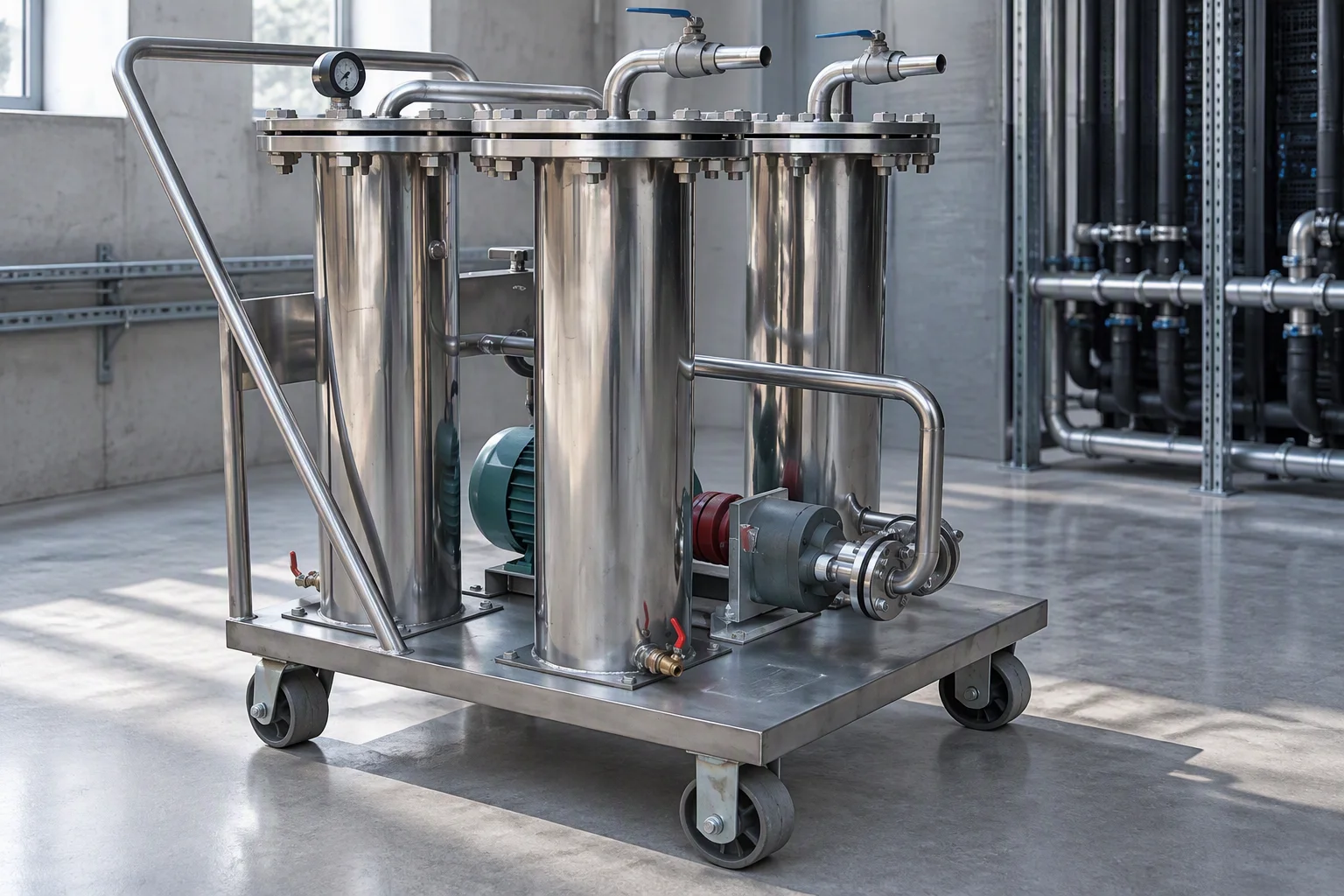

Side-stream skid with its differential-pressure gauge
01 / Position map
Five positions
02 / Skid classes
Three skid classes
Every code carries a DP instrument across the vessel.
EMS-FF-FS60 · 60 L/min
Row loops and small rooms, protection rating.
EMS-FF-FS150 · 150 L/min
Room and plant, multi-bag vessel.
03 / Micron categories
Which micron number applies
| Category | Figure | Owner |
|---|---|---|
| Protection rating | 7–10× smaller than the finest channel dimension | This page · a 50 µm passage takes a 5 µm filter · absolute, not nominal |
| Commissioning staging | 100 → 50 → 25 µm · commissioning staging | A procedure owned by flush skids, not the filter that runs afterwards |
| Strainer rating | 500 µm class · strainer rating | The unit-inlet guard, not a filtration stage |
| IT-side target | below 5 µm protection rating at the cold plate · below 10 µm at a rear-door heat exchanger | Solids target |
A full-flow filter sits 2× as fine as the smallest passage; side-stream to 10×. Viscosity 1.68 to 8.20 mPa·s, 15 % to 55 % PG.
04 / Element comparison
Beta ratio
Beta is upstream over downstream count at a stated size.
| Metric | Figure |
|---|---|
| Selected minimum β | β ≥ 75 · 98.7 % capture |
| Efficiency | (β−1)/β · at the measured size |
| Absolute-rated media | 99.98 % retention |
| Nominal-rated media | 90 % nominal |
05 / Differential pressure
The instrument that manages a filter
Change-out
35psid · ≈2.4 bar
Terminal limit
60psid · 4.1 bar
At 20 °C.
Clean start, 2 µm element, protection rating , protection rating
2psid · 0.17 bar
Gauges or sensors both sides of every filter and strainer. Range 0–100 kPa at ±0.075 % FS. Wire to the loop telemetry kit: telemetry and instruments.
06 / Vessel and media
Size on the dirty state
| Parameter | Value |
|---|---|
| Working pressure | up to 150 psi · 10.3 bar |
| Flow per bag hole | up to 150 GPM · 34 m³/h |
| Configuration | 12-round multi-bag |
| Design basis | loaded state |
| Metal filter cloth | 5–40 µm protection rating |
| Coarse plain weave | 100–200 µm and above |
| Construction | 316L |
| High-flow cartridges | to 1 µm |
| Backwash types | to 10 µm protection rating |
| Prefiltration | upstream of 5 µm protection rating |
| Vessel connection size | quoted on request |
Water-quality bands carry their loop type: technology cooling 0.2–20 µS/cm at pH 8.0–9.5; facility water 50–300 µS/cm at pH 7.0–9.0.
07 / Datasheets
Three skids, three documents
| Model | Side-stream flow | Loop scale | Sheet |
|---|---|---|---|
| EMS-FF-FS20 | 20 L/min | Rack and in-row loops | |
| EMS-FF-FS60 | 60 L/min | Row loops and small rooms | |
| EMS-FF-FS150 | 150 L/min | Room and plant loops, multi-bag class |
The skid polishes the loop. Staged procedure: flush skids.
