Sheet 04 · Quality · three gates on every part

Three gates, and what each one is asked to prove

A part does not pass because it looks right on a bench. It passes because a named measurement was taken, with a named instrument, and accepted against a value written on the drawing. And because the result was written down against the batch it came from.

Request the specification file One business day, with the file attached

Cleanliness ISO 4406 17/15/12 Burst sample ≥ 5.5 MPa Cartridge grade 1 µm absolute System ISO 9001

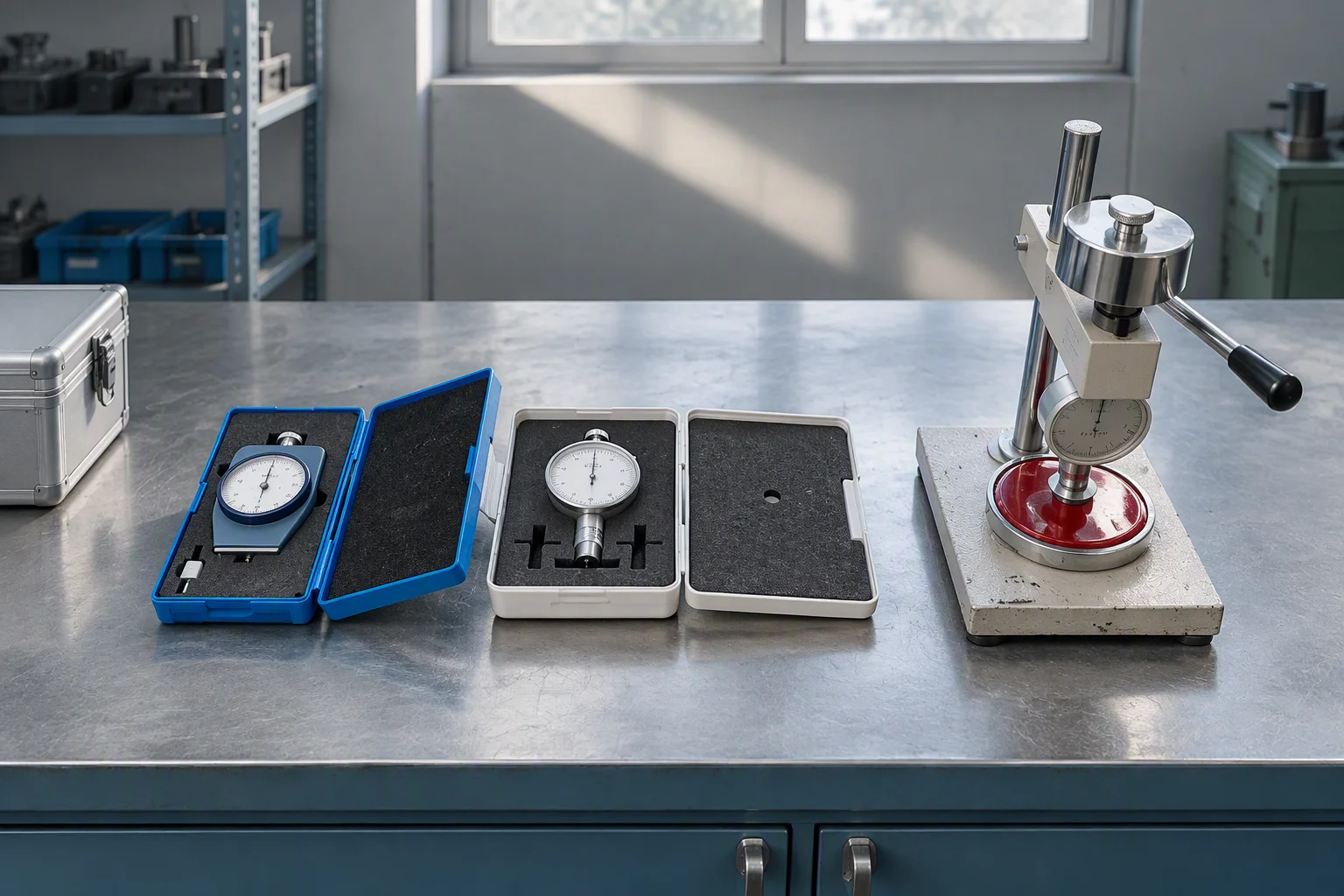

A thread gauge and a micrometer laid on an inspection bench beside a fitting, its printed drawing clipped above the bench
FIG 01

· The gate is a measurement, not an opinion.

01

Incoming, in process, before dispatch

Three gates · one record

Gate 01 Incoming material Before the first cut Grade is read from the mill certificate and checked by hardness. Cross section, wall and release film are measured against the drawing. A drum or a box that fails here is never opened further.
Gate 02 In process While it can still be reworked Threads go and no-go, seal faces checked for flatness, braid coverage read against the retained sample, torque logged on every joint that makes up. The part is still recoverable at this point.
Gate 03 Before dispatch After the part is finished Pressure proof at working pressure, one burst sample per hose batch, a particle count on flushed parts, and the document pack assembled against the batch number. Nothing ships on a verbal release.
The incoming inspection bench: instrument consoles either side of the sample position
FIG 02

· Gate 01. Material is measured before anything is cut from it.

Bench-top testing machines used between operations, load readouts facing the operator
FIG 03

· Gate 02. Rework is cheapest at the bench, so the gauges are at the bench.

A hose assembly on the test rig before dispatch, with the operators running the check
FIG 04

· Gate 03. Proof at 1.38 MPa, held, then written down.

02

What is measured, with what, and against what

Schedule B · eight items · one accept value each

Inspection schedule · item · what is measured · instrument or method · the value it is accepted against
Item What is measured Instrument Accepted against
O-ring and profile gasketGate 01 Cross section, hardness, surface defects on the sealing face Micrometer · durometer Drawing tolerance
Seal face and threadGate 02 Flatness at the face, thread form, make-up depth Gauges · straight edge Outline drawing
Hose bore and coverGate 01 Inside diameter, outside diameter, wall thickness 6.1–15.8 mm I.D DASH −4 to −10
Braid coverageGate 02 Number of plies and coverage at the crown Two plies Retained sample
Pressure proofGate 03 Working pressure held for the dwell time on the drawing 1.38 MPa Test report
Burst sampleGate 03 Failure pressure of one assembly off the batch ≥ 5.5 MPa Test report

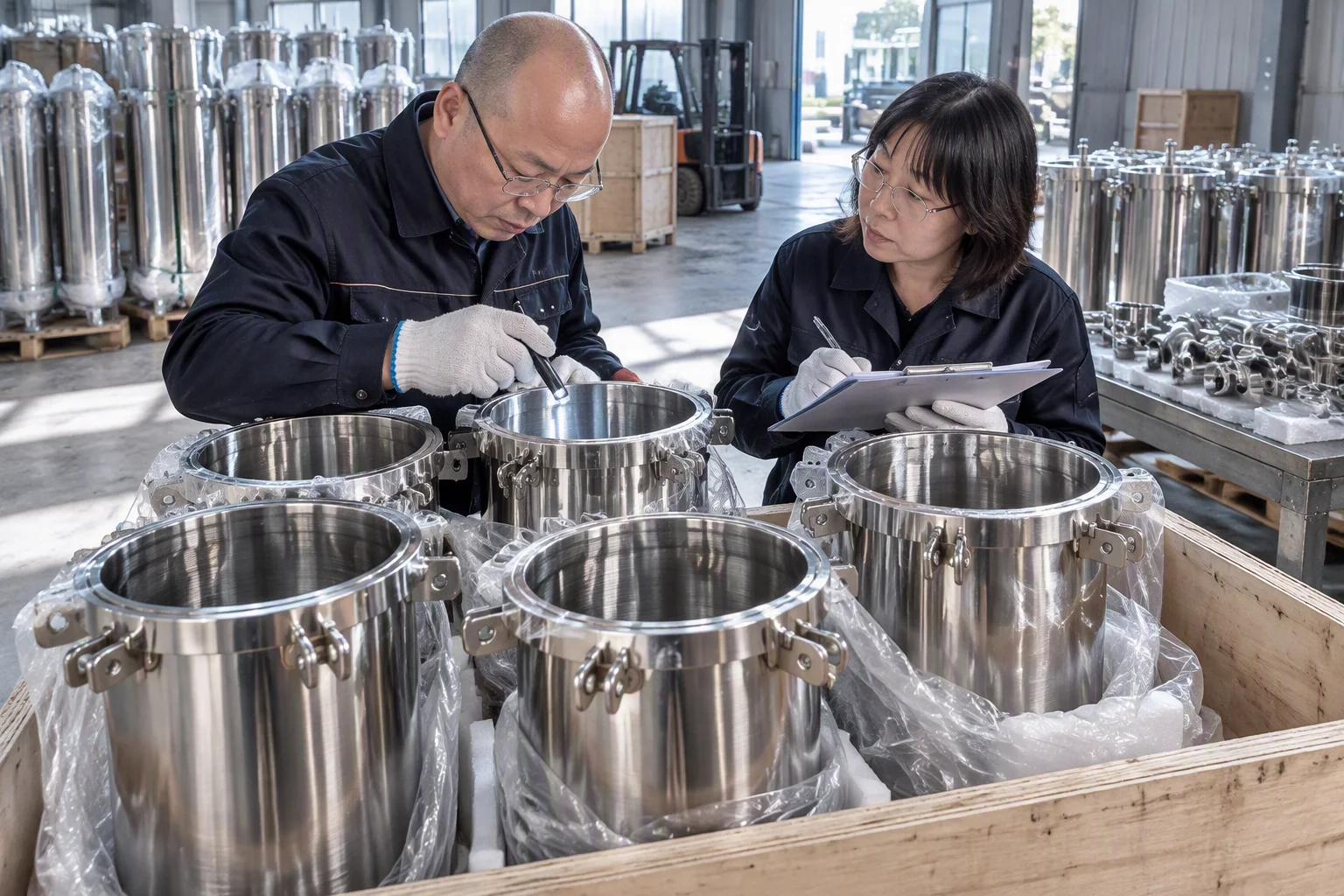

Housing shellGate 03 Design pressure held before the element is fitted ≥ 1.0 MPa Test report
CleanlinessGate 03 Particle count on a sample taken after flushing ISO 4406 17/15/12 Particle count

The instrument column names the tool, not a category: a cross section is a micrometer reading, and a thread is a go and no-go check. Where a drawing tolerance exists, the drawing overrides the value in this schedule.

Seven green O-rings of one size arranged on a grey ground, each lying flat so the cord section is visible
PL 01

· Cord section is measured on a sample off the top of every batch, not on the drawing alone.

Six black O-rings of one size arranged on a white ground, overlapping so the cord thickness can be compared
PL 02

· Surface defects on the sealing face are a reject on their own, whatever the section measures.

A coil of white twisted pair sensing cable with a black moulded connector at each end, photographed on a white ground
PL 03

· Cable assemblies are continuity and insulation tested before the connector is potted, not after.

The hose burst test bench: a steel cabinet with the test chamber door closed and the control panel at the right
FIG 05

· One assembly per batch is taken to failure, so the batch margin is a measured number.

A flush sample bottle standing beside a particle counter on a bench, a printed count sheet laid under the bottle
FIG 06

· Cleanliness is counted on a sample, not judged by the colour of the coolant.

03

The schemes the criteria are read against

Scheme and one line · scans held on the supply side, not by us

ISO 9001 · Quality management, held on the supply side by the works that make the parts.
ISO 45001 · Occupational health and safety management, held on the supply side by the filtration works.
RoHS · REACH · Material compliance declarations come with the pack for every wetted part.
UL 94 V-0 · Flame rating on the cover compound of the hose, quoted as a material property.
T/CAEE 085—2026 · The EPDM hose standard written for cold plate liquid cooling with a water-based coolant.
EN 10204 3.1 · Material certificates for the metal parts, issued per heat by the mill.
ISO 4406 · The cleanliness grading every flushed part is counted against, at the 17/15/12 target.
OCP · ASHRAE · The public specifications the loop criteria are read against, alongside the project's own.

The schemes are named here with one line each, and scans held on the supply side are shown below. Every one of them is held by the works that make the parts, not by us: a scan proves the scheme to the extent that the works it names are the works that made the goods.

An operator at a machine on the line, back to the camera, feeding a length through
FIG 07

· The length the record is raised against: an operator running the piece through the machine.

A test equipment room: a row of cabinets and ovens on a green epoxy floor under a white ceiling
FIG 08

· The test equipment those readings come from, standing on the floor where the batch runs.

Scan of the ISO 9001 certificate issued to: Quality management. Held by the filtration supplier, valid to December 2026.
CERT 01

· ISO 9001. Quality management. Held by the filtration supplier, valid to December 2026.

Scan of the ISO 9001 certificate issued to: Quality management. Held by the instrument supplier, valid to December 2026.
CERT 02

· ISO 9001. Quality management. Held by the instrument supplier, valid to December 2026.

Scan of the TÜV SÜD · PED certificate issued to: Pressure equipment conformity for the flowmeter range, issued 2025.
CERT 03

· TÜV SÜD · PED. Pressure equipment conformity for the flowmeter range, issued 2025.

Scan of the Pressure vessel licence certificate issued to: Special equipment manufacturing licence, held by the filtration supplier, valid to May 2028.
CERT 04

· Pressure vessel licence. Special equipment manufacturing licence, held by the filtration supplier, valid to May 2028.

04

What happens to a batch that fails a gate

Hold · decide · replace · re-issue

Hold
The batch stops where it is. It is not sent on to the next gate while a measurement is out of tolerance, and it is not shipped against a promise to sort it later.
Decide
Either the part is reworked to the drawing and re-measured, or the batch is rejected and replaced from the line. A concession is only ever made with the buyer's written agreement.
Record
The failure, the cause and the action go on the same record sheet that carries the acceptance values. The sheet is not rewritten to look clean.
Re-issue
Where the batch is replaced, a new batch number is opened and the document pack is re-issued against it. The old pack is withdrawn, not amended.
A tray of parts set aside with a hold tag clipped to the tray edge and the inspection sheet left face up beside it
FIG 09

· A held batch keeps its own tray, tag and sheet. Nothing is mixed back in.

A record sheet with a reading written out of tolerance, the failure circled and the action and date written in the margin
FIG 10

· The failed reading stays on the sheet. A record with no failures in it is a record nobody kept.

Thermal pads in black, grey, pink and blue fanned in a stack on a white ground, showing grade colour differences
PL 04

· Colour is a grade marker, not a check. Thickness and compressibility decide acceptance.

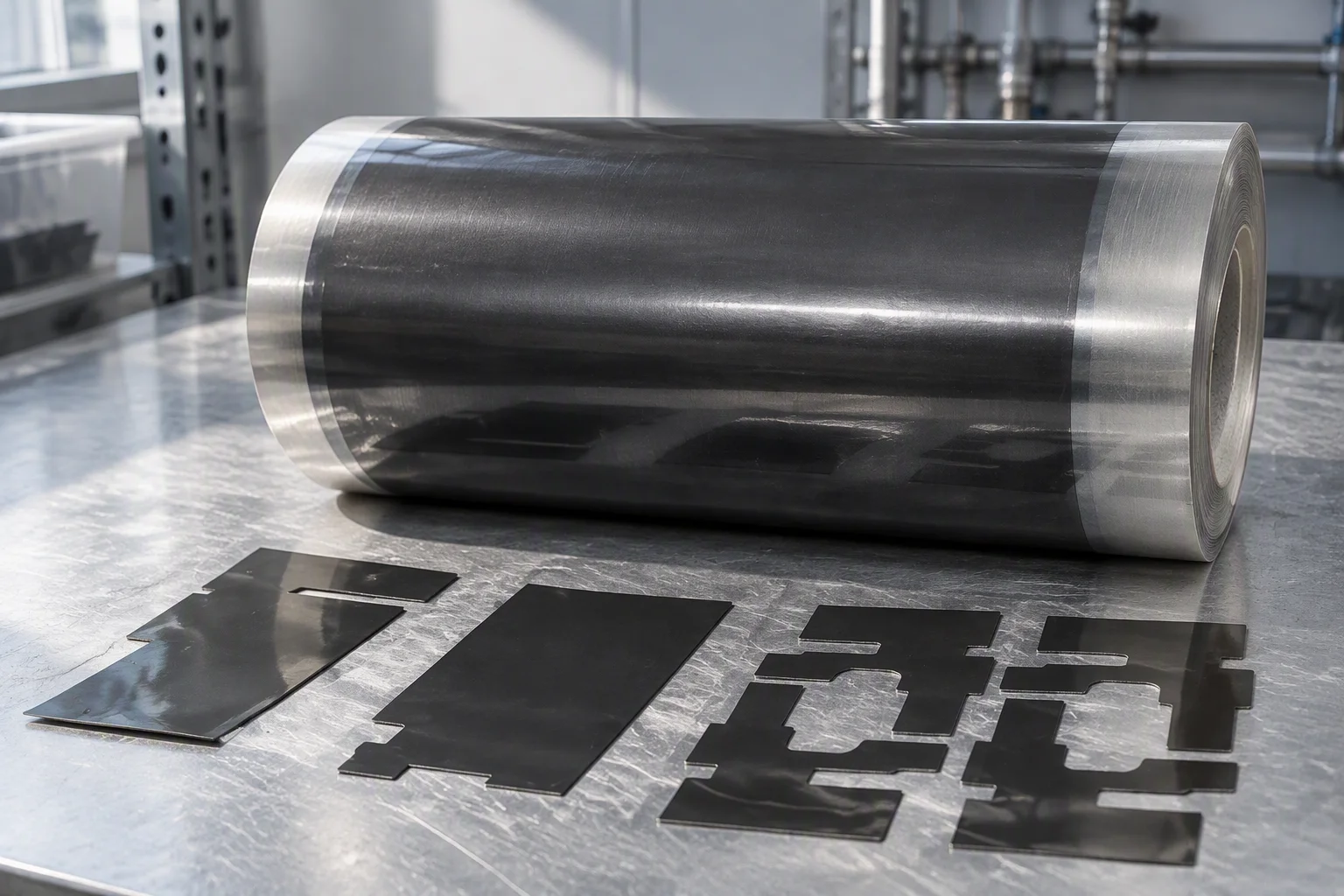

Eight die-cut graphite sheets arrayed on a white release film with blue locating tape at the corners
PL 05

· A die-cut batch is checked for outline and flatness. Either can be re-cut; neither is shipped as it is.

Document request

Four documents are held for this sheet. Tick the ones you need.

Tick a document, name the line and the quantity, and the file comes back attached.

The only promise on this page

One business day, with the file attached.

Nothing else on this sheet is promised. A pass rate, a defect rate and lead time are not promised here.
