Cables and accessories · 13 codes

Extension cables, terminators and accessories

Mandatory per controller 1 + 1leader, terminator

Leader 4.6 m, non-sensing.

Consumables per metre 0.9–1.2m clips, 3 m tags

Plus one 3 m jumper per crossing.

Cables and accessories only; no CDUs, no cold plates. Without a terminator, a cut cable reads quiet.

Ask for the specification sheet

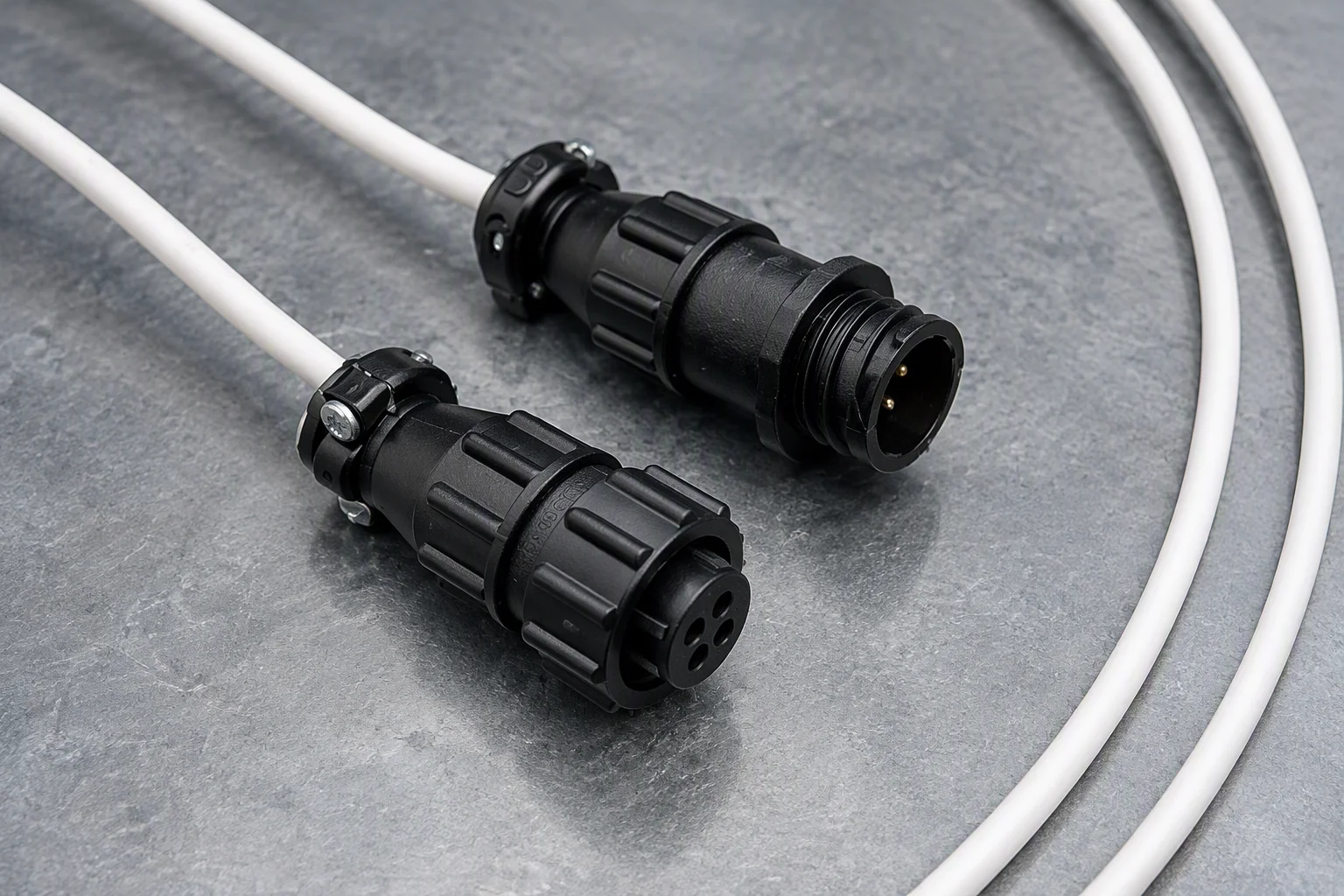

Two moulded leak detection cable connectors joined by a white leader cable, resting on a bench

01 / Categories

Thirteen codes, four categories

Every code, its category and quantity rule; each links to a datasheet.
Code	Item, deciding figure	Category	Quantity
EMS-LD-T1	Terminator	mandatory	1 / loop
EMS-LD-T2	Leader 4.6 m, kit	mandatory	1 / controller
EMS-LD-X4	Leader 4.6 m	mandatory	1 / controller
EMS-LD-T3	Clip, packs of 10 to 200	consumable	1 / 0.9–1.2 m
EMS-LD-T4	Tag, pack of 10	consumable	1 / 3 m
EMS-LD-X1	Jumper 1 m	crossings	1 / crossing
EMS-LD-X3	Jumper 3 m, crossover fix	crossings	1 / crossing
EMS-LD-X15	Extension 15 m	optional	as routed
EMS-LD-X30	Extension 30 m	optional	as routed
EMS-LD-T5	X-connector	optional	1 / branch
EMS-LD-T6	Weighted connector	optional	1 / drop
EMS-LD-T7	Enclosure	optional	1 / remote panel
EMS-LD-T8	Rack bracket, 482 mm (19 in)	optional	1 / rack panel

02 / X-series

The non-sensing half

Sensing: none. This length cannot report a position. Weights at 29.7 g/m.
Code	Function, length, weight	Quantity
EMS-LD-X1	jumper, 1.0 m, 0.03 kg	crossings
EMS-LD-X3	crossover, 3.0 m, 0.09 kg	1 / crossing
EMS-LD-X4	leader, 4.6 m, 0.14 kg	1 / controller
EMS-LD-X15	extension, 15 m, 0.45 kg	as routed
EMS-LD-X30	extension, 30 m, 0.89 kg	as routed

Connector, bend radius

03 / Termination in full

Why the last connector matters

Representative code EMS-LD-T2 in full; every other code carries the same row set on its datasheet.
Supplied as	kit: 4.6 m leader and terminator; 1 per controller
Function	completes the loop; the leader does not sense
Connector, radius	4-pin twist-lock, 24.38 mm; 12.70 mm
Temperature, plenum	0 to +75 °C; UL CL2P
Probe leaders	4.3 m; 2.0 m uplink
Pre-installed, spares	works-fitted; hold one each; not specified in this product class

Supervised loop

04 / Bill of materials

Two run sizes, whole packs

Clip and tag arithmetic

Line	100 m run	500 m run
Sensing rope	1 × EMS-LD-R100	1 × EMS-LD-R500, or 5 × R100
Controller	EMS-LD-C2, or C4	EMS-LD-C8, or C16
Leader, terminator	1 × EMS-LD-T2	1 × T2 per controller
Clips at 0.9–1.2 m	84–111; 2–3 packs of 50	417–556; 9–12 packs of 50
Tags at 3 m	34; 4 packs of 10	167; 17 packs of 10

Counts are arithmetic from the published spacing. Mass: 2.97 kg at 100 m, 14.87 kg at 500 m. Jumpers: one X3 per crossing.

Clips and tags

05 / Rates

Spacings that decide survival

Item	Rate, and why
Securing clip	0.9–1.2 m; stops sagging and abrasion; 3 m; the next contractor sees the run
Colour, radius	yellow or orange; visible under a tile; 3 m; an unbroken crossing averages two points; 12.70 mm; 4-pin twist-lock, 24.38 mm

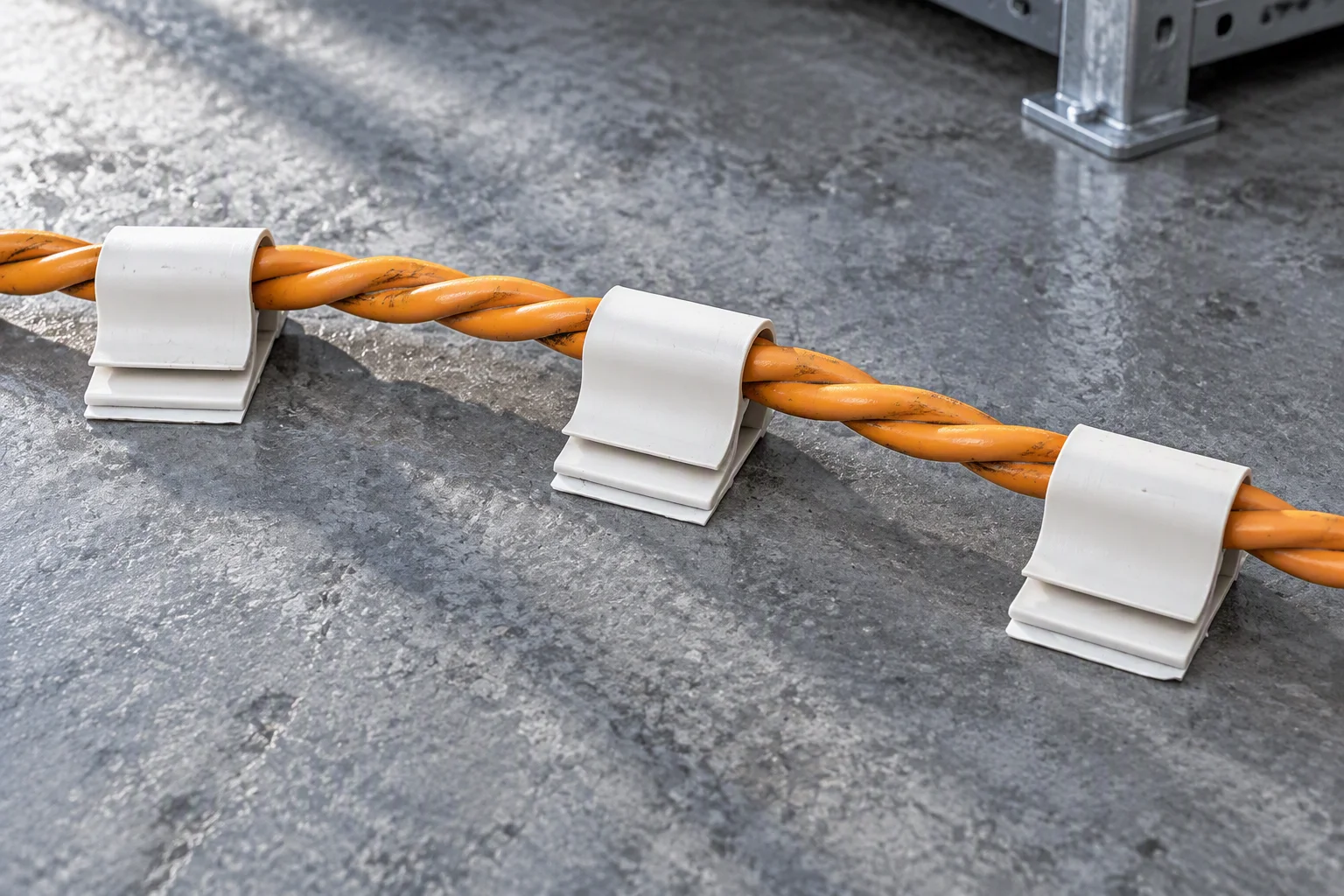

Close-up of securing clips holding a leak detection run at a floor transition, with a caution tag visible in frame

Clip, tag, radius

07 / Packing

Logistics figures for a quote

Mass, pack size and cut-to-length

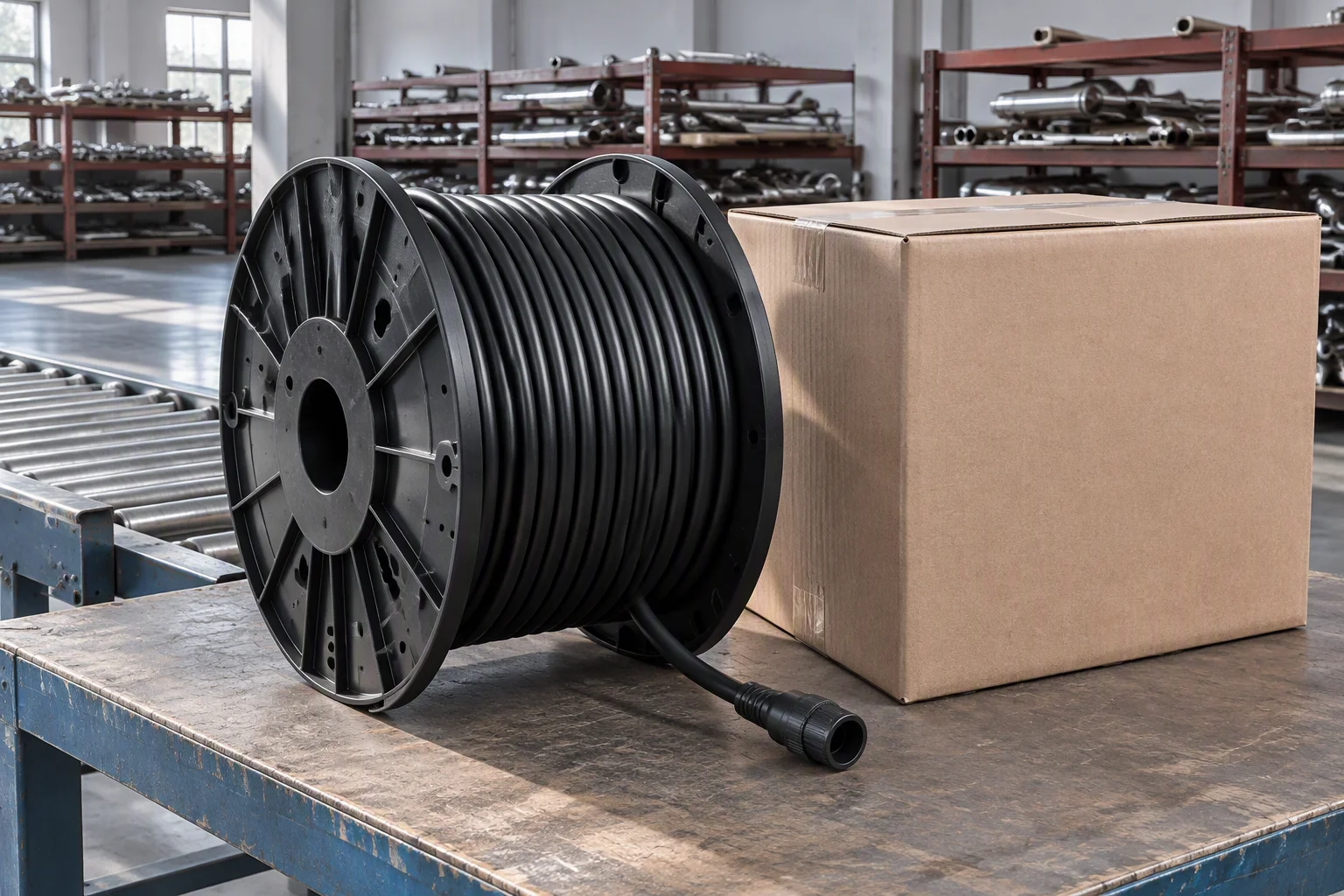

A black cable reel with a moulded connector tail standing on a despatch bench beside a closed plain carton, racking and a roller conveyor behind — Reel and packed carton

29.7 g/m

0.02 lb/ft.

14.87 kg

500 m reel.

2.97 kg

100 m pack.

−30 to +85 °C

Storage; 0 to +75 °C operating.

10, 25, 50, 200

Clip packs; tags of 10.

Cut to length

Terminated to the agreed length.

Packed with the model code on the reel label and the packing list.

08 / Datasheet

Send the layout and crossing count

Returns the bill of materials with clip and tag quantities and the reel masses.

Ask for the specification sheet EMS-LD-T1 datasheet
